Easy Operation
•Plug & Charge with one-touch start, auto power-off when fully charged – effortless and efficient.
Space-saving & Easy Installation

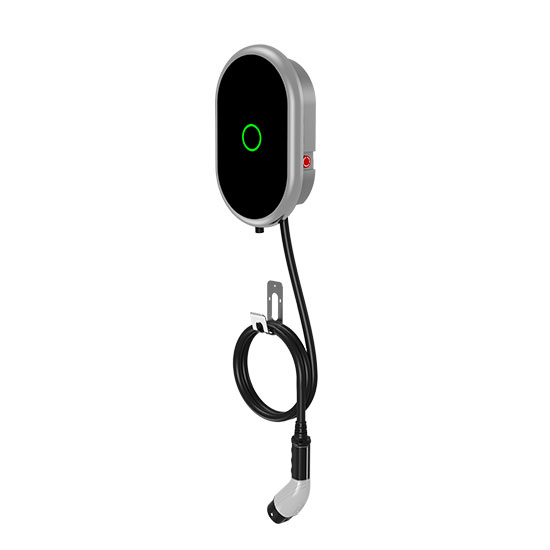

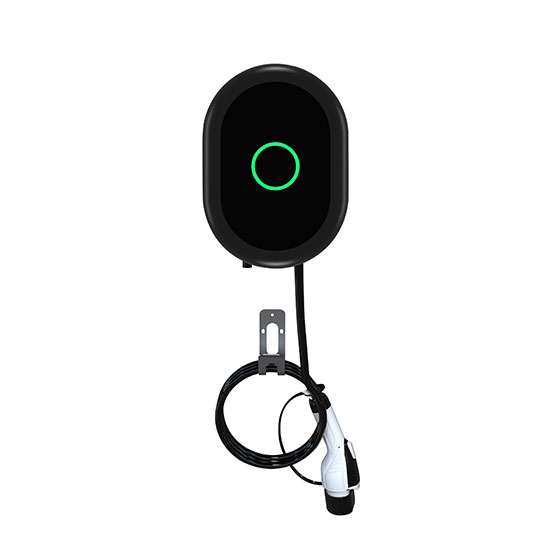

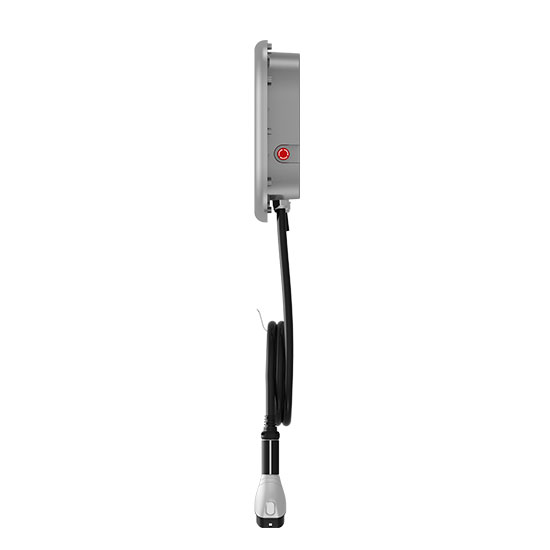

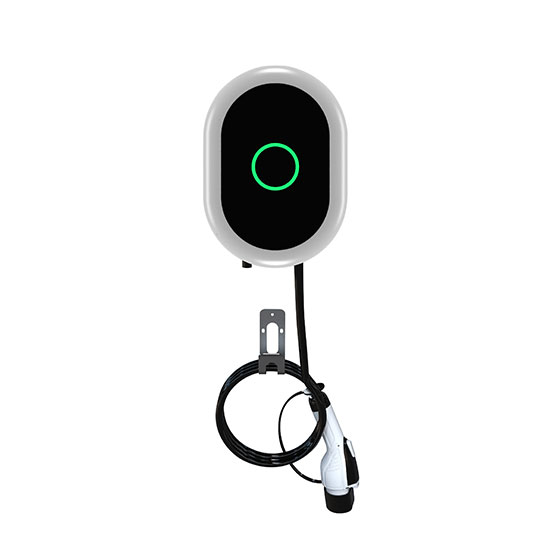

• Wall-mountable or column-mountable, it takes up little space and is suitable for installation in home garages, parking lots and other places.
Safe & Reliable
• Equipped with multiple protections including over-voltage, over-current, leakage, and short-circuit protection for secure charging.
| Parameter | US | EU | ||
| Product Power | 7.6kW | 9.6kW | 11.5kW | 7kW |
| Input Voltage | 120 - 240Vac(±10%), 60Hz | 230Vac(±10%), 50Hz | ||
| Max. Output Current | 32A | 40A | 48A | 32A |
| Interface Type | SAE J1 772 / NACS | Type 2 | ||
| Input Wire Harness | L1, L2/N, PE | L, N, PE | ||
| Protection Level | Type 4 | IP65 | ||
| Operating Temperature | -22℉~122℉ (-30℃~50℃) | |||
| Relative Humidity | ≤95% | |||
| Operating Altitude | 2000m | |||
| IK Level | IK08 | |||
| Operating Environment | Outdoor (with canopy), Indoor | |||
| Usage Occasion | Residential charging | |||
| Installation Mode | Wall-mounted (standard), Floor-standing (optional) | |||
| Number of Output | 1 (line length 7.5m) | |||
| Size (H*W*D) | 15.90X10.23X3.96" / 404.8X260X100.6mm | |||
| Net Weight | 7kg | |||
| HMI & Startup Method | ||||
| Charging Method | Standard: Plug and charge Optional: Scan QR code, Bluetooth |
|||
| Connectivity | LAN, Bluetooth, 4G, OCPP1.6J | |||
| Indicator Light | Two-color indicator, Standby: Green light always on, Charging: Green light flashes, Fault: Red light always on. | |||
| Display Screen | None | |||
