High Compatibility

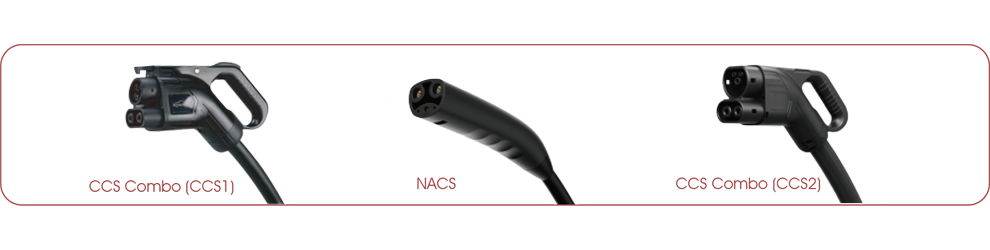

• Universal support: CCS1, CCS2, NACS, and CHAdeMO connectors.
• Flexible payments: RFlD card or customizable POS terminals.
• Certified metering: MID, PTB, ETL approved for global compliance.
Convenient & Efficient Maintenance
• Modular design: Quick-access external components
• Rapid service: Single-person maintenance in ≤15 minutes.
• Cost-effective: Minimizes downtime and labor expenses.
Multi-mount - For Every Scene

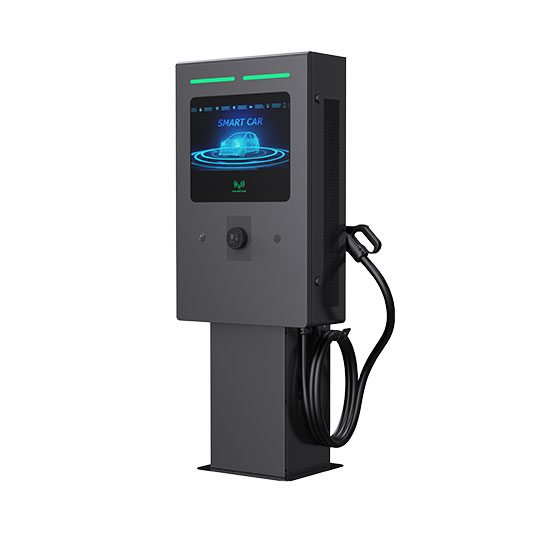

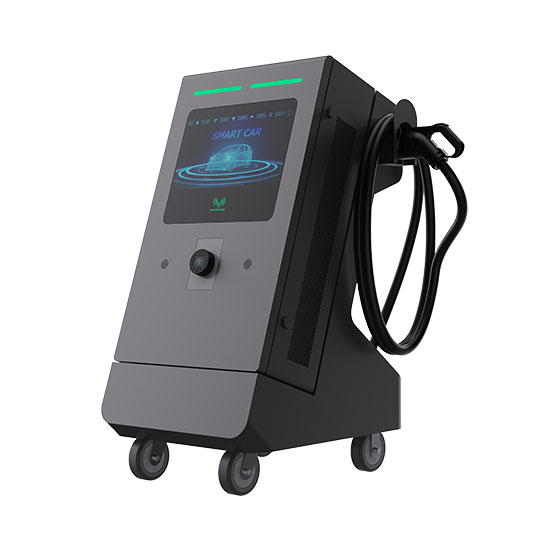

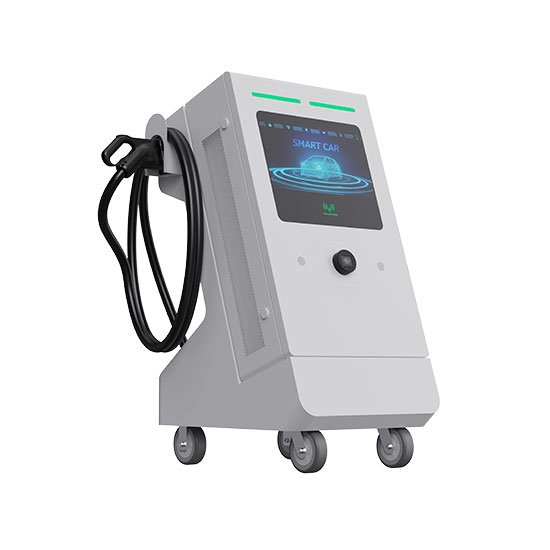

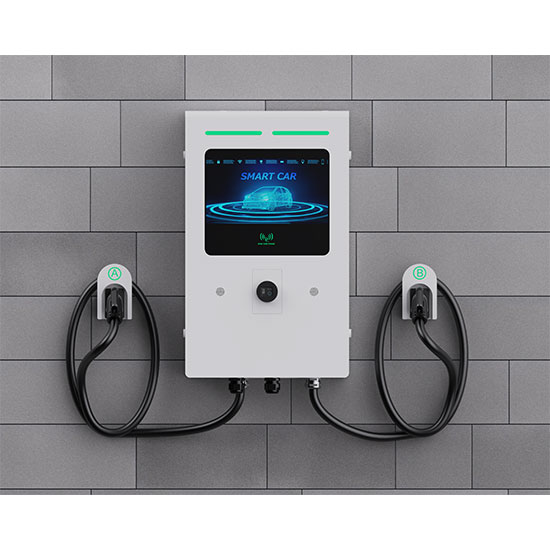

• Versatile installation: Wall, pole, or car-mounted options.
• RAdaptable solutions: Home garages, commercial lots, temporary setups.
| AC Input US / EU | |
| Input Voltage |
3-phase 480V AC (+10%/-15%) 60Hz 3-phase 208V AC (+10%/-15%) 60Hz 3-phase 400V AC (+10%/-10%) 50Hz |
| Grid Type | TN-S, TT |
| Power Factor | ≥0.98 |
| Total Harmonic Distortion | <5% |
| Overvoltage Category | AC Side (Input) OVC: III |
| DC Output | |
| Output Power | 40kW, 60kW (37kW/208V), 80kW (46kW/208V) |
| Min. Adjustable Power | 20kW, 30kW, 40kW |
| Output Voltage | 200 - 1000VDC |
| Output Current | 250A |
| Peak Efficiency | 95% |
| Number of Outputs | 2 |
| Charging Mode | CCS1, CCS2, NACS, CHAdeMo, GB/T |
| Earthing System | 3P, PE (No neutral) |
| User Interface | |
| Credit Card Reader | Nayax, PAX IM30, Payter |
| RFID Protocol | ISO 14443 AB |
| Communication Protocol | OCPP 2.0.1 [OCPP 1.6J optional] |
| Charging Method | QR code, RFID, Credit card (optional) |
| General Specification | |
| Screen Type | LCD (21.5 - inch 1920*1080 touch screen) |
| Connectivity | Double SIM 4G, Wi - Fi, Ethernet |
| Cable Length | 5m |
| Standby Power | 40W |
| Enclosure Rating | NEMA 3S |
| Communication to EV | ISO/IEC 15118, DIN 70121 |
| Operating Altitude | 2000m |
| Operating Temperature | -22°F~131°F (-30°C~55°C) |
| Storage Temperature | -40°F~158°F (-40°C~70°C) |
| Size (L*W*H) | 25.4X10.8X41.3" / 645x275x1050mm |
| Protection | Overcurrent, Overvoltage, Undervoltage, Over - temperature, Short - circuit, Insulation monitor, Surge protection |
