Safety and Reliability
• Features multi-dimensional active fire protection design to prevent fire hazards.
• Adopts high-quality lithium iron phosphate (LiFePO4) battery cells to ensure system safety.
• Complies with relevant design standards including IEC61000-6-2/4, UL1973, UL9540A, IEC62619, UN38.3, and FCC Part15.
Flexible Deployment
• External maintenance design enables quick installation and commissioning.
• Supports seamless parallel connection of up to 4 units, facilitating capacity expansion on demand.

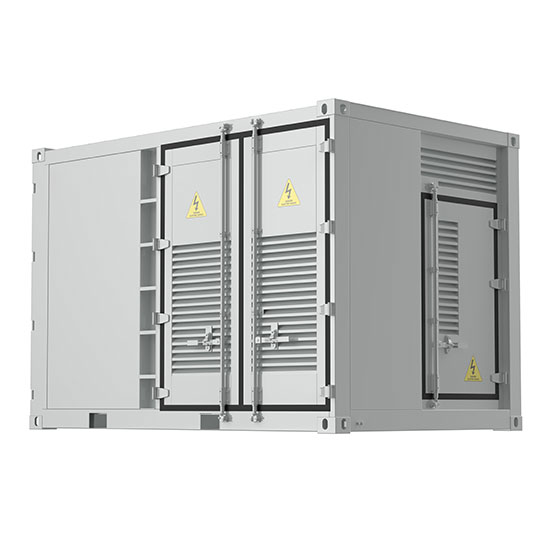

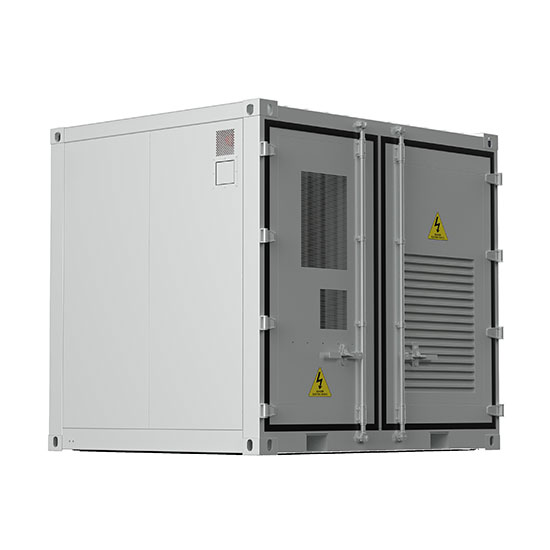

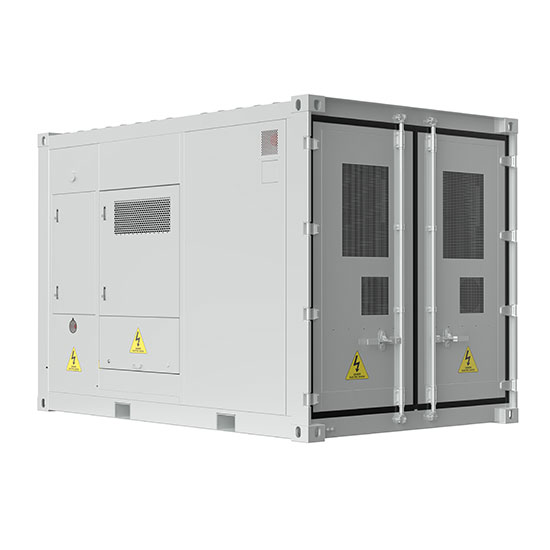

• Mobile containerized design, compatible with four-point lifting, single-point lifting, and forklift loading/unloading for easy transportation.
High Efficiency and Energy Conservation

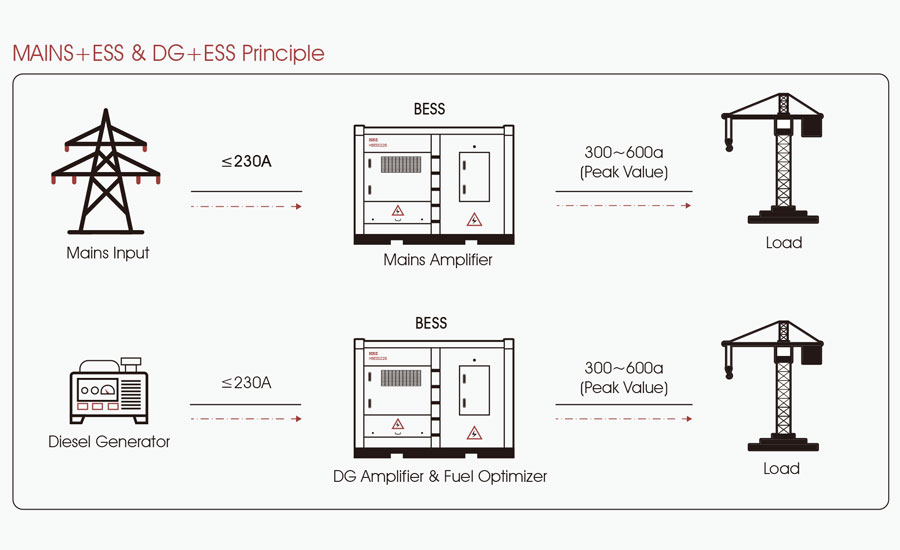

• Enables rapid expansion of utility power supply without additional application procedures, realizing fast and efficient power supply.
• Optimizes the fuel efficiency of diesel generators to reduce costs and save energy, with a maximum fuel saving rate of50%.
Intelligence and User-Friendliness
• Provides comprehensive intelligent monitoring and early warning functions.
• Achieves 0ms seamless power failure switching (uninterrupted power transition).
• Fully intelligent and automatic operation, supporting flexible setting of operating parameters.
| Series | HBESS225C | HBESS225I | HBESS450C | HBESS450I | |||||
| Battery System（DC） | |||||||||
| Rated Capacity | 225kWh | 225kWh | 450kWh | 450kWh | |||||
| Battery Type | LifePO4 | ||||||||
| Design Cycle Life(25℃,0.5C,80%DOD,70%EOL) | 6000 cycles | ||||||||
| Rated Charge/Discharge Rate | 0.5C / 0.5C | ||||||||
| Max. Discharge Rate | 0.5C | 1C (60S) | 0.5C | 1C (60S) | |||||
| US | EU | US | EU | US | EU | US | EU | ||
| System Output（AC） | |||||||||
| Rated Power | 100kW | 112.5kW | 225kW | 225kW | |||||
| Overload Power (< 1 mins) | 120kW | 225kW | 300kW | 450kW | |||||
| Overload Current(< 1 mins) | 144A | 173A | 270A | 324A | 360A | 433A | 540A | 648A | |
| Rated Current | 121A | 144A | 136A | 162A | 270A | 324A | 270A | 324A | |
| Voltage Range | 480VAC | 400VAC | 480VAC | 400VAC | 480VAC | 400VAC | 480VAC | 400VAC | |
| Frequency | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | |
| Grid Type | 3-phase 4-wire | 3-phase 4-wire | |||||||
| US | EU | US | EU | ||||||
| System Input（AC） | |||||||||
| Voltage Range | 480VAC | 400VAC | 480VAC | 400VAC | |||||
| Max. Charge Power | 112.5kW | 160kW | |||||||
| Support Power Types | Mains/D.G. ≤150kVA | Mains/D.G. ≥200kVA | |||||||
| PV Input（DC） | |||||||||
| PV DC Coupling | Customized | ||||||||
| System Parameter | |||||||||
| Isolation Method | Isolation transformer | ||||||||
| Parallel Operation | Support (≤4 sets ) | ||||||||
| Communication | Ethernet, RS485, 4G (optional) | ||||||||
| Protection Level | IP54 | ||||||||
| Thermal Management | Wind cooling | ||||||||
| Noise Level | ≤65dB | ||||||||
| Operating Temperature | -4℉~122℉ (-20℃~50℃) | ||||||||
| Size (L*W*H) | 2800x2200x2400mm | 2800x2200x2400mm | 3500x2200x2400mm | 3500x2200x2400mm | |||||
| Net Weight | 6.5T | 7.0T | 8.5T | 10T | |||||
