APP-Based Intelligent Monitoring.
Smart Energy Management
• Stores excess solar energy generated during daytime peak sunlight for release during household electricity usage peaks, cutting home power consumption.
Easy Installation & Scalable Storage.

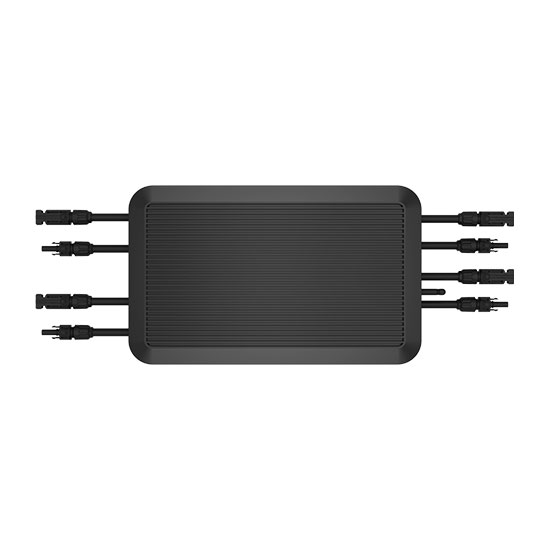

| PV HUB EU | |
| Max. Input Power | 1600W |
| Pv Input Voltage | 18V-60V (Vmp) |
| Max. Charge Input Current | 40A |
| Max. Output Power | 800W*2 Max |
| Output Voltage | 18V-55V |
| Max. Discharge Current | 45A |
| PV String Connection | 800W*2 Max, 12-60V |
| MPPT Efficiency | 99% |
| Communication | WIFI, Bluetooth |
| Operating Temperature | -4℉~149℉ (-20℃~65℃) |
| Net Weight | 3.2kg |
| Size (L*W*H) | 14.2X8.7X2.3" / 360X220X60mm |
| Battery Data | |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 1536Wh (1 battery) |
| Total Energy | 4608Wh (3 battery) |
| Operating Voltage | 40V-57.6V |
| Cycle Life | 3000 times (1 battery) |
| Warranty | 10 years |
| Operating Temperature | 14℉~113℉ (10℃~45℃) |
| Protection Level | IP65 |
| Humidity | 5% to 90% [no condensing] |
| Net Weight | 16.5kg (1 battery) |
| Single Batt. Size (L*W*H) | 14.2X8.7X8.4" / 360X220X213.5mm |
