Safety and Reliability
• Adopts high-quality lithium iron phosphate (LiFePO4) battery cells to ensure system safety.
• Complies with relevant design standards including IEC61000-6-2/4, IEC62619, IEC 62109-1/2, and UN38.3.
Easy Installation
• Integrated design of solar energy and energy storage, facilitating installation and deployment.
Convenient Capacity Expansion
• Supports parallel operation of up to 10 units. (It is recommended that the number of units does not exceed 3; an external STS (Static Transfer Switch) is required if more than 3 units are used.)
Efficient Control

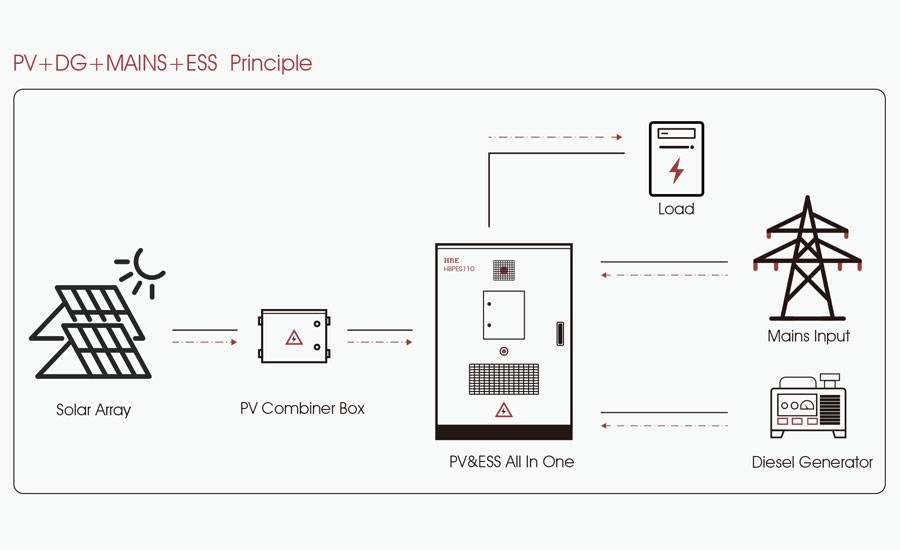

• Supports hybrid operation with multi-energy complementarity and enables fast on-grid/off-grid switching within 10ms.
• Suitable for power consumption scenarios such as farms, villas, small-scale industrial and commercial facilities, and small microgrids.
| Series | HPBES060 | HPBES110 | HPBES160 | HPBES225 | |
| Battery System (DC) | |||||
| Capacity | 61.4kWh | 112.5kWh | 160kWh | 225kWh | |
| Battery Type | LiFePO4 | ||||
| Design cycle life(25℃,0.5C,80%DOD,70%EOL) | >＞6000 cycles | ||||
| Max. Charge Power | 30kW | 50kW | 80kW | 100kW | |
| PV Input(DC) | |||||
| Max. Input Power | 38.4kWp | 76.8kWp | 153.6kW | 153.6kWp | |
| MPPT Voltage | 250-850Vdc | ||||
| No. of MPPT Channels | 2 | ||||
| Mains & D.G. Input (AC) | |||||
| Max. Input Power | 30kW | 50kW | 80kW | 100kW | |
| Voltage Range | 400±10%Vac | ||||
| Frequency | 50Hz | ||||
| System Input (AC) | |||||
| Rated Power | 30kW | 50kW | 80kW | 100kW | |
| Max. Power | 33kW | 55kW | 88kW | 110kW | |
| Voltage Range | 400Vac±20% | ||||
| Frequency | 50Hz | ||||
| OFF Grid Switching Time | ≤10ms | ||||
| General Parameter | |||||
| Operating Temperature | -20～50℃ | ||||
| Operating Humidity | 0～95%（non-condensing） | ||||
| Noise Level | ≤65dB | ||||
| Protection Level | IP54 | ||||
| Thermal Management | Wind cooling | ||||
| Size (L*W*H) | 1200*1000*1600 | 1300*1200*2000 | 1300*1200*2400 | 1300*1200*2600 | |
| Net Weight | ~1.5T | ~2.3T | ~3.5T | ~4T | |
