Delivers up to 19.2kW (240V) per port, supporting continuous 80A current for fast charging of two vehicles simultaneously.
High corrosion resistance & type 4 rating, suitable for indoor/outdoor use in diverse climates.

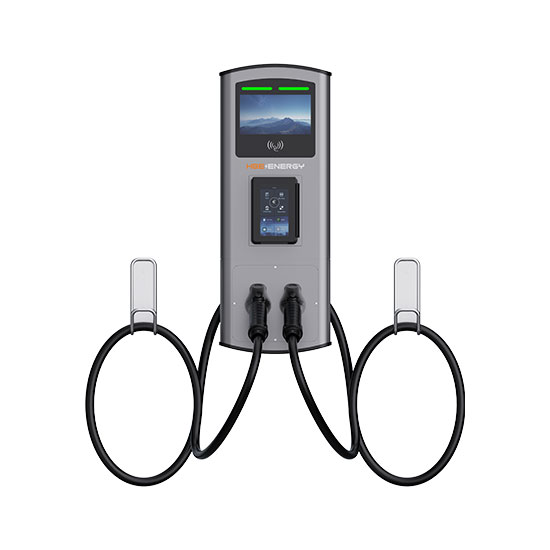

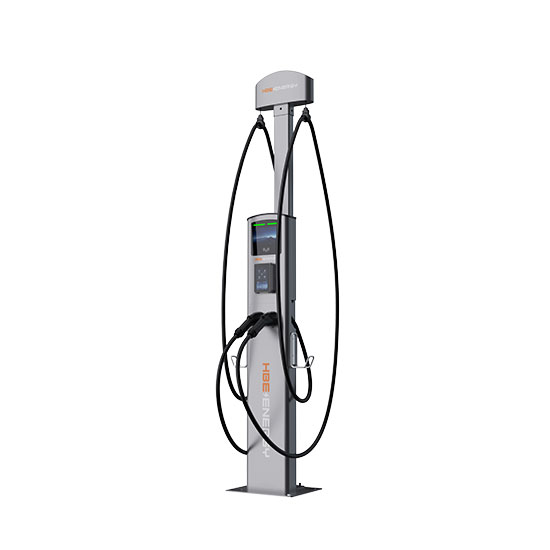

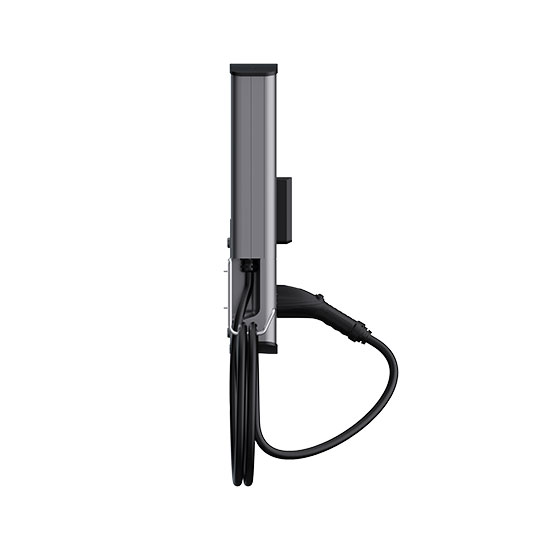

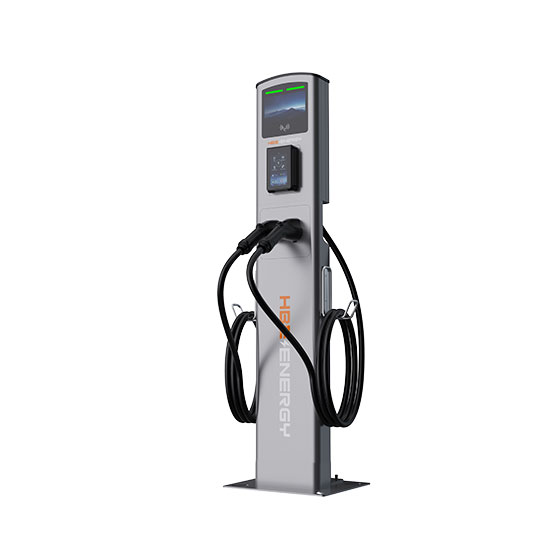

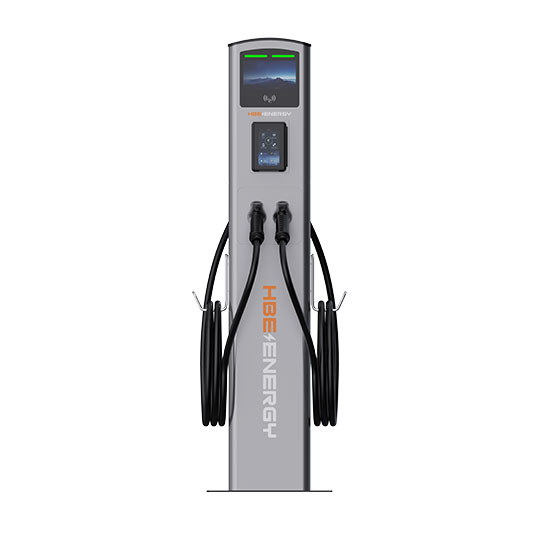

Versatile installation choices: wall-mounted, middle column, or high column configurations to suit various site layouts and requirements.
| Output | US |
| Product Power | 19.2kW×2 |
| Number of Interfaces | 2 |
| Current | 80A×2 |
| Energy Metering Accuracy | ±1% |
| Charging Connector | Type 1+NACS / Type 1+Type 1 / NACS+NACS |
| Input | |
| Voltage | 208Vac / 240Vac |
| Power Connection | L1, L2/N, PE |
| User Interface | |
| Connectivity | Ethernet, Wi-Fi, Bluetooth, 4G, RS485 (Optional) |
| Communication | Standard: OCPP 2.0.1 / Optional: OCPP 1.6J |
| Remote Management | Remote Access, Diagnostics, (Over-the-Air OTA) Software Update Enabled |
| Load Management | Smart Charge, Scheduled Charging |
| Display Screen | 7-inch Touch Screen |
| Charging Status Indicator | Standby: Solid Green, Charging: Breathing Blue, Fault: Flashing Red |
| Authentication | RFID Card (ISO14443, TypeA, MIFARE®), Mobile APP, Auto-start Charging on Connection, POS (Optional) |
| General Characteristics | |
| Protection Level | Type 4 |
| Operating Humidity | ≤95% (Non-condensing) |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Operating Altitude | ≤6562ft (2000m) |
| Usage Environment | Outdoor / Indoor |
| Mounting Option | Floor-Stand / Wall-Mount (Optional) |
| Cable Length | 16.4ft (line length 5m) / Optional: 25ft (line length 7.5m) |
| Weight (Approximate) | 20kg |
| Dimension (HxWxD) | Wall-Mount: 24.85×9.45×3.94" / 630×240×100mm Floor-Stand: 52.55×9.45×3.94" / 1335×240×100mm Floor-Stand With CMS: 82×9.45×3.94" / 2080×240×100mm |
| Safety | |
| Leakage Protection | CCID 20 |
| Surge Protection | 6KV@3,000A |
| Safety Features | Over-voltage & Under-voltage Protection, Over-current Protection, Ground Fault Protection Zero-crossing Detection,Power-down Detection,Relay Overtemperature Protection. |
*Product technology is continuously iterated. Specifications are subject to change without notice, and the final interpretation rests with our company's technical department.
