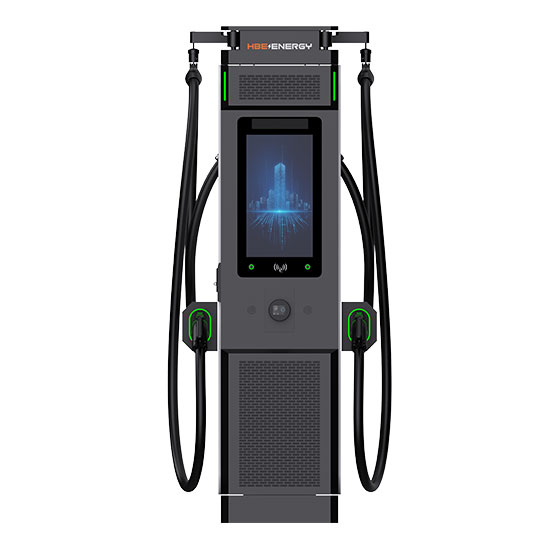

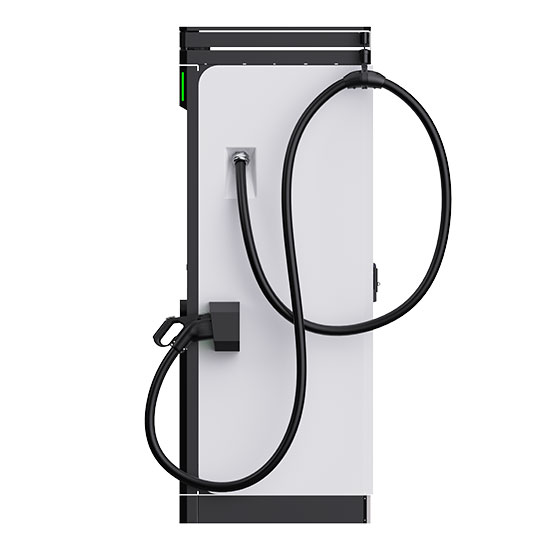

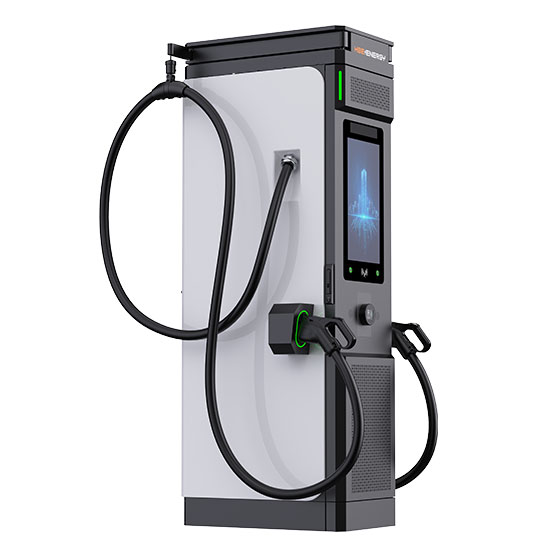

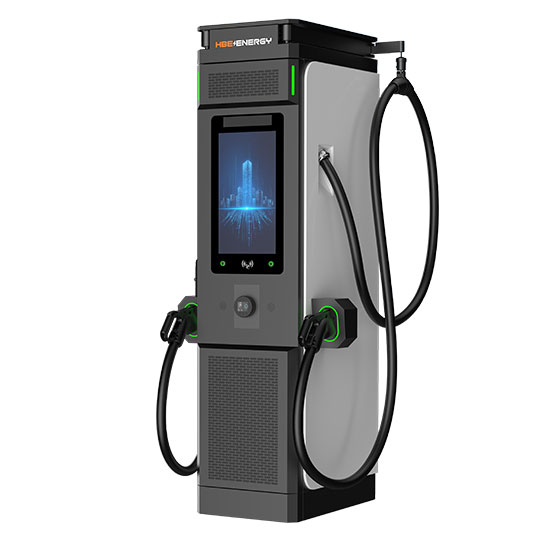

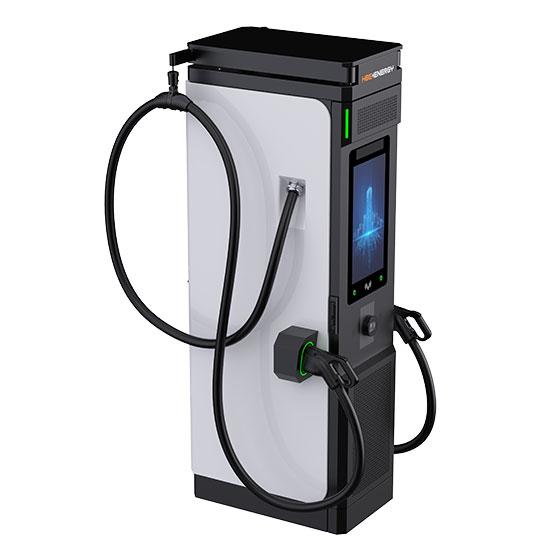

Delivers 240kW DC high-power output (400A current), significantly reducing charging time to meet the demanding needs of commercial EV fleets and high-traffic stations.
With a type 3R rating, it ensures durable performance in demanding outdoor environments like open parking lots and perimeter zones.
Flexible Installation, Universal Compatibility
Floor-Standing design: Enables easy, flexible installation without relying on walls or supports.
Universal Compatibility: Supports US charging standards (NACS, CCS1) to accommodate a wide range of electric vehicles.
| Output | US |
| Product Power | 240kW |
| Number of Interfaces | 2 |
| Current | 400A×2 |
| Voltage | 200-1000Vdc |
| Charging Connector | CCS1+NACS / CCS1+CCS1 / NACS+NACS |
| Input | |
| Voltage | 480Vac |
| Current | 310A |
| Input Wire | TN-S, 3P+PE |
| User Interface | |
| Charging Method | Standard: Swipe RFID Card(offline), Plug and Charge / Optional: POS |
| Communication | Standard: OCPP 2.0.1 / Optional: OCPP 1.6J |
| Network Connection | Ethernet, Wi-Fi, Bluetooth, 4G (Optional) |
| Display Screen | 21.5-inch Touch Screen |
| Indicator Light | Standby: Solid Green, Charging: Breathing Blue, Fault: Flashing Red |
| General Characteristics | |
| Protection Level | Type 3R |
| Operating Humidity | ≤95% |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Operating Altitude | ≤6562ft (2000m) |
| Usage Environment | Outdoor / Indoor |
| Mounting | Floor-Standing |
| Auto Cable Management | Yes |
| Cable Length | 16.4ft (line length 5m) / Optional: 25ft (line length 7.5m) |
| Weight (Approximate) | 360kg |
| Dimension (HxWxD) | 29.92×18.90×80.71" / 760×480×2050mm |
| Safety | |
| Insulation Detection | IMD |
| Surge Protection | 6KV@3,000A |
| Safety Features | Over-Voltage & Under-Voltage Protection, Over-Current Protection, Power-Down Detection, Insulation Monitoring Detection. |
*Product technology is continuously iterated. Specifications are subject to change without notice, and the final interpretation rests with our company's technical department.
