Delivers 320kW DC high-power output (400A current), significantly reducing charging time to meet the demanding needs of commercial EV fleets and high-traffic stations.
With a type 3R rating, it ensures durable performance in demanding outdoor environments like open parking lots and perimeter zones.
Flexible Installation, Universal Compatibility

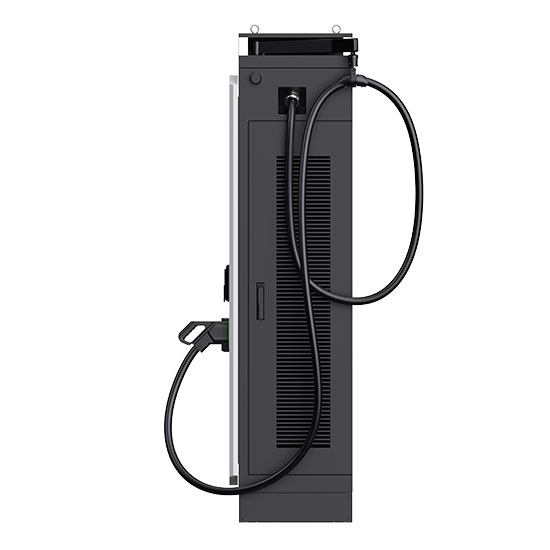

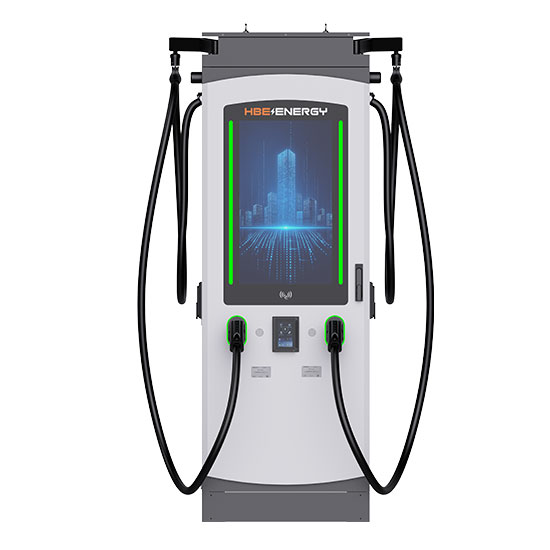

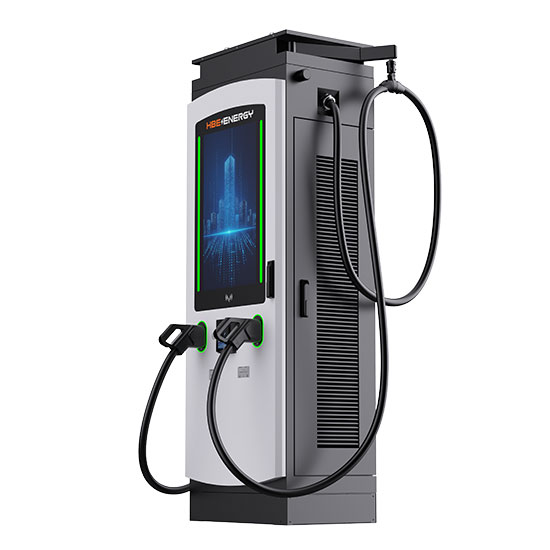

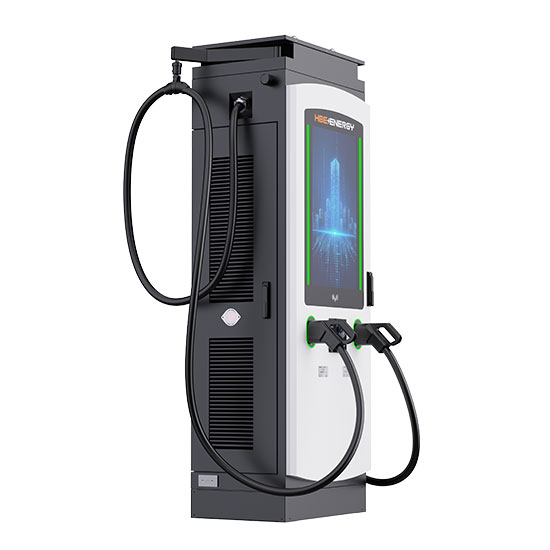

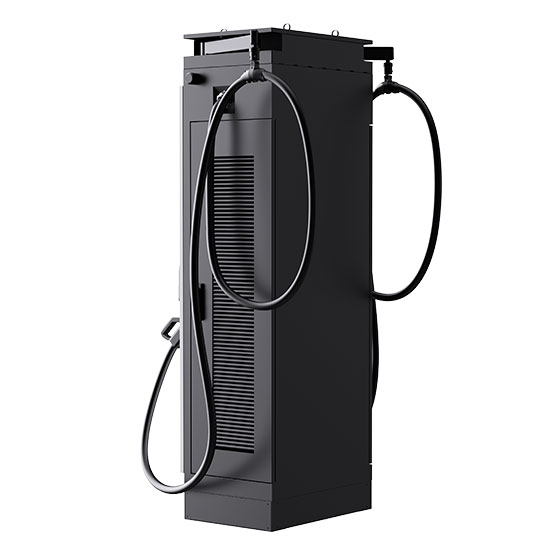

Floor-Standing design: Enables easy, flexible installation without relying on walls or supports.
Universal Compatibility: Supports global charging standards (NACS, CCS1, CCS2) to accommodate a wide range of electric vehicles.
| Output | US | EU |
| Product Power | 320kW | |
| Number of Interfaces | 2 | |
| Current | 400A×2 | |
| Voltage | 200-1000Vdc | |
| Charging Connector | CCS1+NACS / CCS1+CCS1 / NACS+NACS | CCS2 |
| Input | ||
| Voltage | 480Vac | 400Vac |
| Current | 413A | 496A |
| Input Wire | TN-S, IT, 3P+PE | TN-S, 3P+N+PE |
| User Interface | ||
| Charging Method | Standard: Swipe RFID Card(offline), Plug and Charge / Optional: POS | |
| Communication | Standard: OCPP 2.0.1 / Optional: OCPP 1.6J | |
| Network Connection | Ethernet, Wi-Fi, Bluetooth, 4G (Optional) | |
| Display Screen | 32-inch Touch Screen / 21.5-inch Touch Screen (Optional) | |
| Indicator Light | Standby: Solid Green, Charging: Breathing Blue, Fault: Flashing Red | |
| General Characteristics | ||
| Protection Level | Type 3R | |
| Operating Humidity | ≤95% | |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) | |
| Operating Altitude | ≤6562ft (2000m) | |
| Usage Environment | Outdoor / Indoor | |
| Mounting | Floor-Standing | |
| Auto Cable Management | Yes | |
| Cable Length | 16.4ft (line length 5m) / Optional: 25ft (line length 7.5m) | |
| Weight (Approximate) | 400kg | |
| Dimension (HxWxD) | 84.65×28.35×20.87" / 2150×720×530mm | |
| Safety | ||
| Insulation Detection | IMD | |
| Surge Protection | 6KV@3,000A | |
| Safety Features | Over-Voltage & Under-Voltage Protection, Over-Current Protection, Power-Down Detection, Insulation Monitoring Detection. | |
*Product technology is continuously iterated. Specifications are subject to change without notice, and the final interpretation rests with our company's technical department.
