The high-power DC output (40kW / 60kW / 80kW optional) significantly reduces charging time, meeting the demands of most electric vehicles.
Optional LAN/Wi‑Fi/Bluetooth/4G with OCPP 2.0.1/1.6J compatible, intelligent energy management capable.
Type 3R protection rating; supports wall-mounted, column, and trolley mounting for safe, reliable all-weather operation (indoor/outdoor).
| Output | US |
| Product Power | 40kW Series: 40KW@480Vac 60kW Series: 60KW@480Vac / 45KW@240Vac / 38KW@208Vac 80kW Series: 80KW@480Vac / 56KW@240Vac / 46KW@208Vac |
| Number of Interfaces | 2 |
| Current | 40kW Series: 150A×2 (or 125A×2) 60kW Series: 250A×2 (or 150A×2) 80kW Series: 250A×2 (or 150A×2) |
| Voltage | 200-1000Vdc |
| Charging Connector | CCS1+NACS / CCS1+CCS1 / NACS+NACS |
| Input | |
| Voltage | 480Vac / 240Vac / 208Vac |
| Current | 40kW Series: 52A@480Vac 60kW Series: 78A@480Vac / 116A@240Vac / 113A@208Vac 80kW Series: 103A@480Vac / 145A@240Vac / 137A@208Vac |
| Input Wire | TN-S, 3P+PE |
| User Interface | |
| Charging Method | Standard: Swipe RFID Card(offline), Plug and Charge / Optional: POS |
| Communication | Standard: OCPP 2.0.1 / Optional: OCPP 1.6J |
| Network Connection | Ethernet, Wi-Fi, Bluetooth, 4G (Optional) |
| Display Screen | 21.5-inch Touch Screen |
| Indicator Light | Standby: Solid Green, Charging: Breathing Blue, Fault: Flashing Red |
| General Characteristics | |
| Protection Level | Type 3R |
| Operating Humidity | ≤95% |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Operating Altitude | ≤6562ft (2000m) |
| Usage Environment | Outdoor / Indoor |

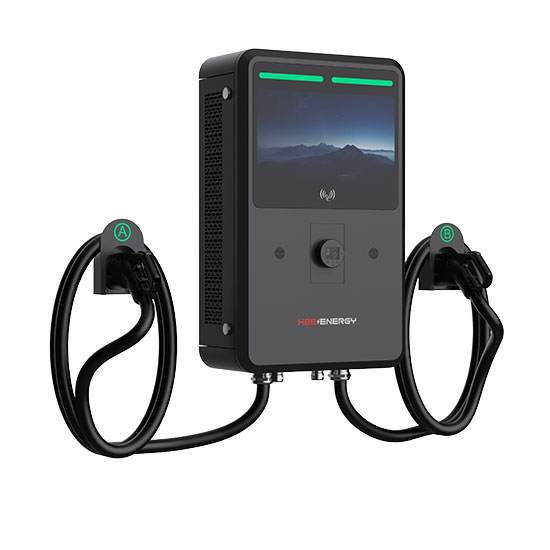

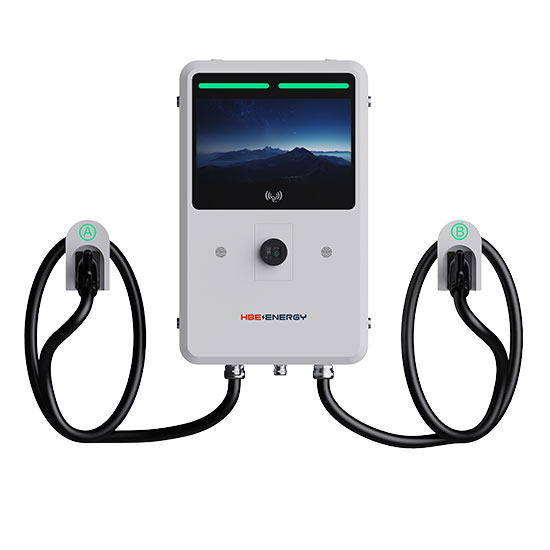

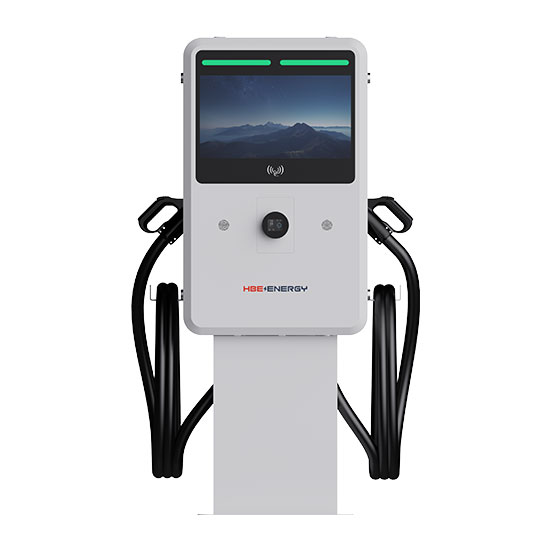

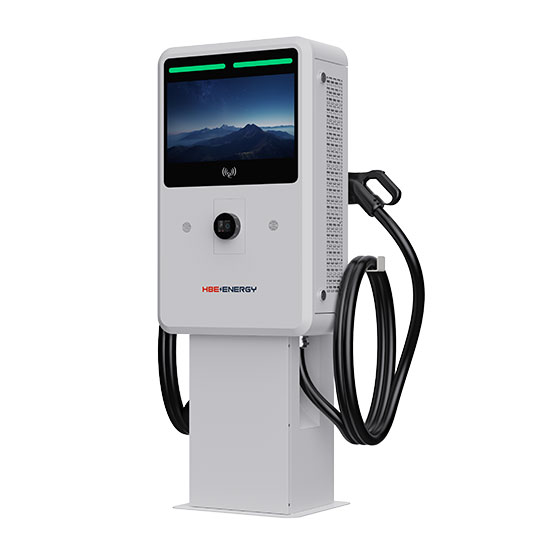

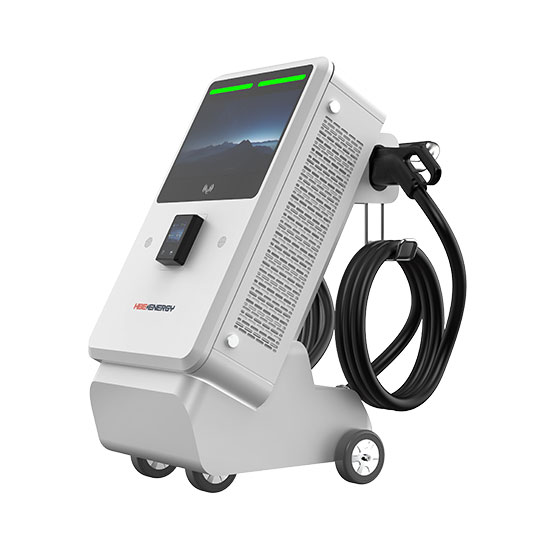

| Mounting Option | Wall-Mounted / Trolley / Column |
| Cable Length | 16.4ft (line length 5m) / Optional: 25ft (line length 7.5m) |
| Weight (Approximate) | Wall-Mount:110kg / Trolley:180kg / Column:180kg |
| Dimension (HxWxD) | Wall-Mount: 36.81×22.83×10.2" / 935×580×260mm Trolley: 46.1×22.83×25.51" / 1171×580×648mm Column: 59.06×22.83×18.11" / 1500×580×460mm |
*Product technology is continuously iterated. Specifications are subject to change without notice, and the final interpretation rests with our company's technical department.
