Electronic Car Charging Pile

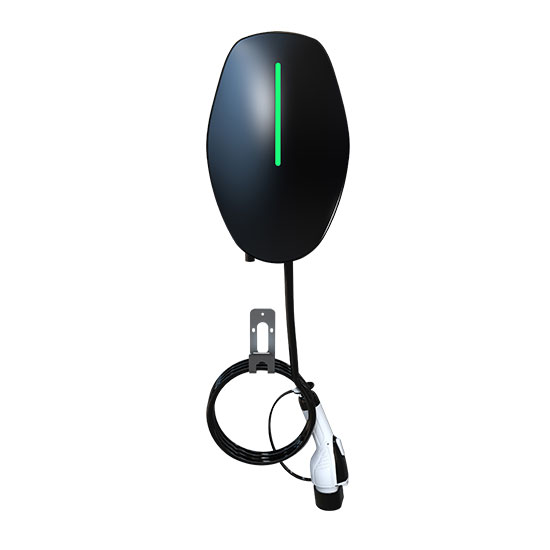

Wall-Mounted AC Charging Pile

Wall-mounted AC charging pile is mainly used for AC slow charging of electric vehicles. The product integrates charging control and guidance, human-computer interaction control, communication, billing and metering, and other functions.

It has good dust-proof and waterproof functions, and the protection level reaches IP64. It can work safely indoors and outdoors (with a rain-proof shed).

The current specifications of the AC charging pile are various, and it is the best choice for AC slow charging to meet the electric vehicle charging requirements of the slow charging interface with different power requirements.

  • Power:

    7KW
    9KW
    10KW
  • Application:

    Household charging.
  • Instructions:

    For household use, it starts charging when plugged in, and automatically stops when fully charged, which is economical.
  • Product Details

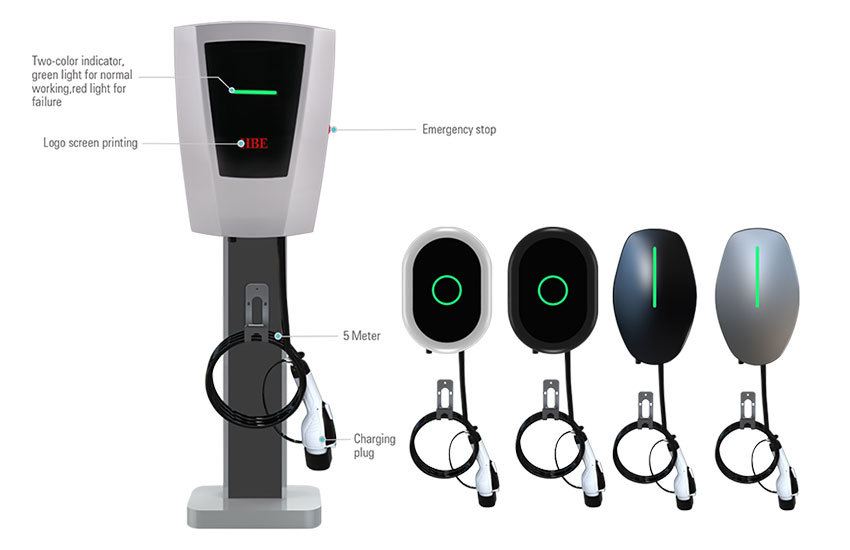

wall ac charging pile detail
SPECIFICATIONS

Power

7KW, 9KW, 10KW

wall ac charging pile detail

Input voltage

120-277VAC

Input frequency

47~63Hz

Maximum input current

32A, 40A, 48A

Charging mode

Start charging at the moment of plugging in, Scan code by mobile phone

Communication mode

Ethernet, 4G

wall ac charging pile detail

Working temperature

-20°C~55°C (-4°F~122°F)

Relative humidity

≤95%

Protection leve

IP64

Safety design

Leakage Protection, Overvoltage Protection, Overcurrent Protection, Under voltage Protection, Emergency-stop Protection, Automatically stop charging when fully charged, Short circuit Protection, Over-temperature Protection

Installation method

Wall-mounted, Floor-mounted

wall ac charging pile detail

Interface number

One (5 meters long line)

Dimension

15.16"X10.43"X3.74"(385X265X95mm)

Working environment

Outdoor (with rain shelter), Indoor

Usage situation

Household charging

  • wall ac charging pile detail
  • wall ac charging pile detail
  • wall ac charging pile detail
