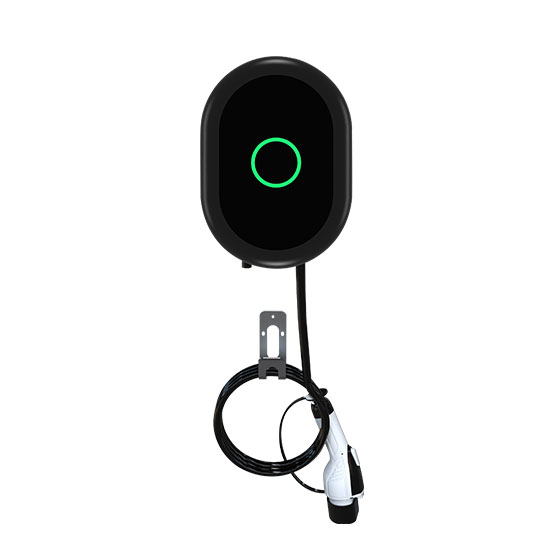

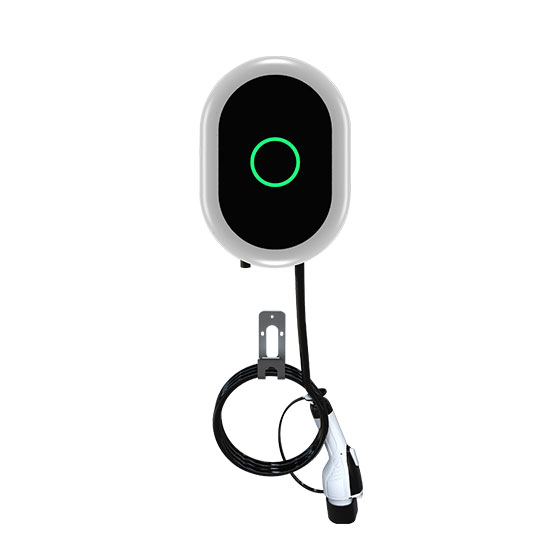

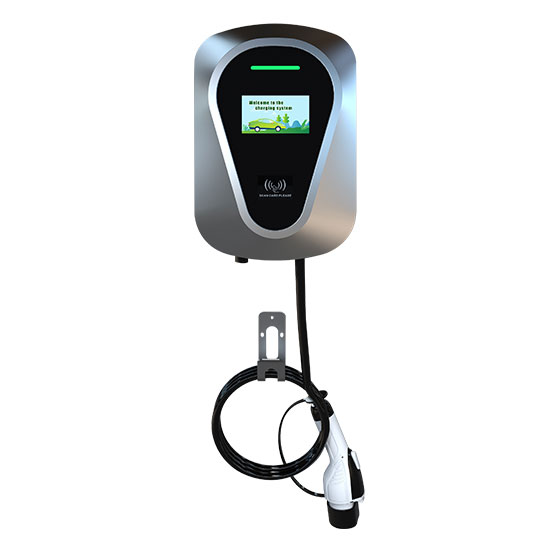

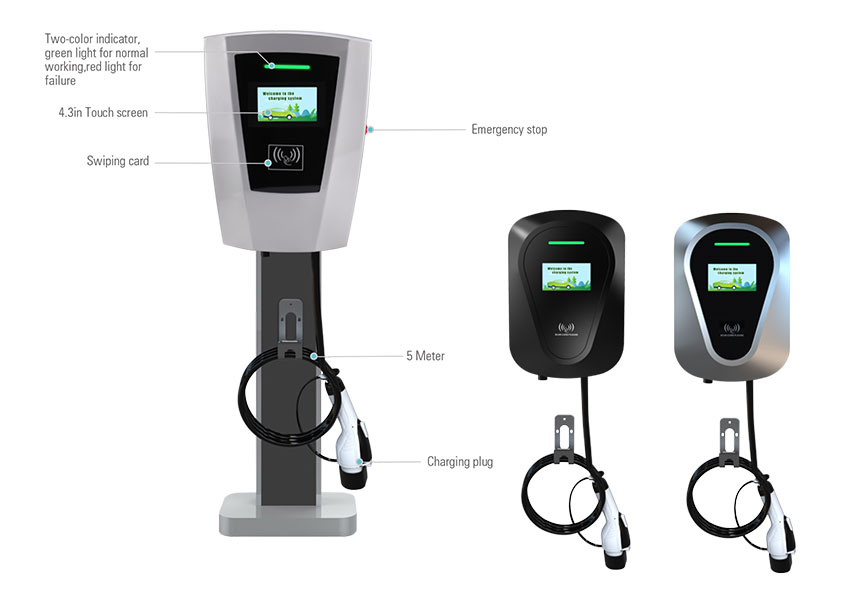

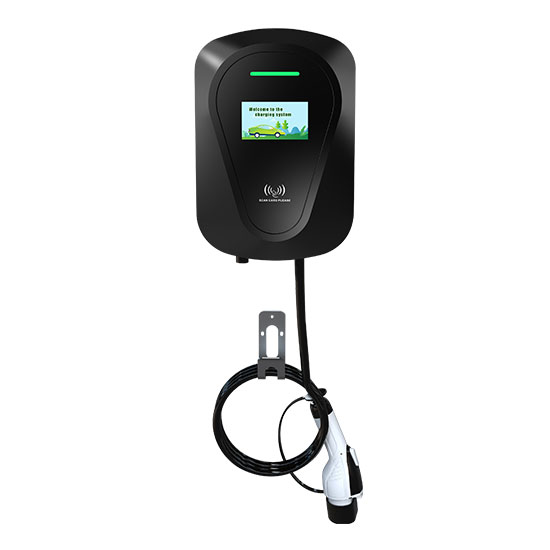

Wall-mounted AC charging pile is mainly used for AC slow charging of electric vehicles. The product integrates charging control and guidance, human-computer interaction control, communication, billing and metering, and other functions.
It has good dust-proof and waterproof functions, and the protection level reaches IP64. It can work safely indoors and outdoors (with a rain-proof shed).
The current specifications of the AC charging pile are various, and it is the best choice for AC slow charging to meet the electric vehicle charging requirements of the slow charging interface with different power requirements.
Power:
Application:
Household charging and Commercial charging.Instructions:
Start by swiping a card or entering password, which is convenient and quick, and can be operated by a mobile phone after networking.
| SPECIFICATIONS | ||
Power |
7KW, 9KW, 10KW |
|
Input voltage |
120-277VAC |
|
Input frequency |
47~63Hz |
|
Maximum input current |
32A, 40A, 48A |
|
Charging mode |
Household use: Offline swipe card to start, enter password to start |
|
Communication mode |
Ethernet, 4G |
|
Working temperature |
-20°C~55°C (-4°F~122°F) |
|
Relative humidity |
≤95% |
|
Protection leve |
IP64 |
|
Safety design |
Leakage Protection, Overvoltage Protection, Overcurrent Protection, Under voltage Protection, Emergency-stop Protection, Automatically stop charging when fully charged, Short circuit Protection, Over-temperature Protection |
|
Installation method |

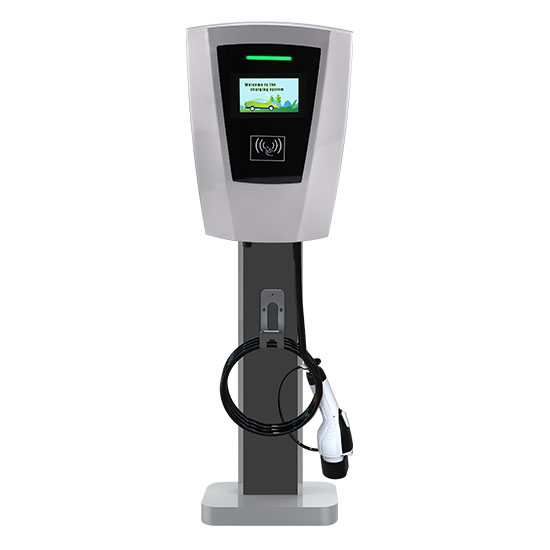

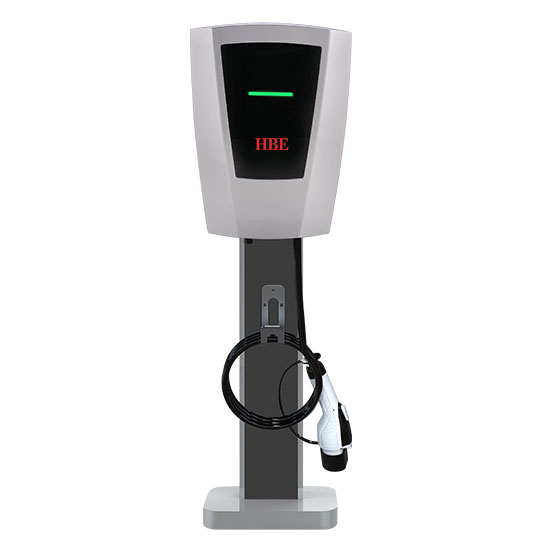

Wall mounted, Floor mounted |
|
Interface number |
One (5 meters long line) |
|
Dimension |
15.16"X10.43"X3.74"（385X265X95mm) |
|
Working environment |
Outdoor (with rain shelter), Indoor |
|
Usage situation |
Household charging, Commercial charging |
|
